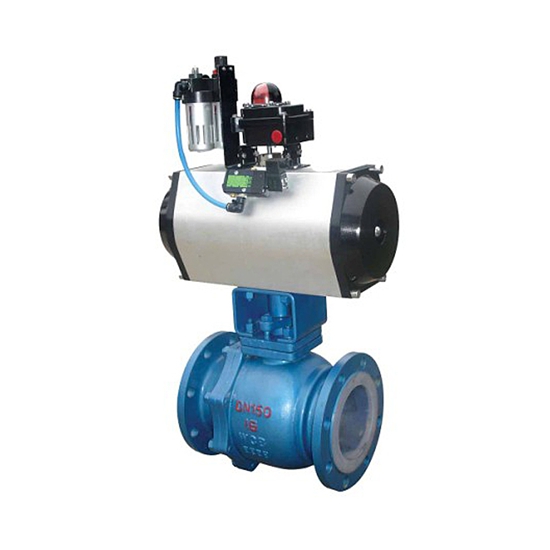

ZSHOF pneumatic fluorine ball valve ZSHOF is the use of pneumatic actuators and fluorine ball valve, valve with fluorine plastic as the inner lining, and matched with rod sphere structure model, its unique elastic lip seal seat structure plus, it has the advantages of an ordinary ball valve, high sealing performance and low operating torque at high pressure and high temperature range. Pneumatic fluorine ball valve can be used for switching or adjustment, conveying corrosion pneumatic ball valve is suitable for liquid and gas pipeline in various industrial (including steam), can work well in all kinds of acid, alkali, salt and other corrosive media. Full bore pneumatic fluorine ball valve to provide maximum flow, and can be used for pipeline purging, cleaning or quarantine transmission.
Corrosion resistance of pneumatic ball valve is widely used in various types of industrial liquid and gas pipeline (including steam) delivery, especially with severe corrosive media occasions, such as: sulfuric acid, hydrofluoric acid, phosphoric acid medium, chlorine, alkali, aqua regia and other strong corrosive.
Main technical parameters:
Valve body and internal:
The valve body form: two section type cast body (lining PTFE)
Nominal diameter: DN15 ~ DN400
Nominal pressure: PN1.6, 2.5, 4 MPa 150; ANSI, 300LB; JIS 10, 20, 30K
Flange standards: GB, JB, HG, JIS, ANSI, DIN
Connection: flange type
The gland bolts type: type
Suitable temperature: -40 ~ +180 ℃
Ball form: "O" type full fluorine sphere
Flow characteristics: approximate quick opening characteristics
Packing: V type PTFE packing, flexible graphite packing etc.
Actuator:
Actuator type: GT, SR, ST, AT, AW series of single and double acting pneumatic actuator
Air pressure: 0.4 ~ 0.7MPa
Air interface: G1/4 "," G1/8 ", G3/8, G1/2"
Environment temperature: -30 ℃ to +80 ℃
The role of the form: a single acting actuator: air to close (B) - lost when the gas valve open (FO); open air (K) - lost when the gas valve closed (FC)
Double acting actuators: air to close (B) -- the loss of gas when the valve position to maintain (FL); open air (K) - the loss of gas when the valve position to maintain (FL)
Can be equipped with accessories: locator, electromagnetic valve, air filter regulator, Paul position valve, limit switch, valve position transmitter, the hand wheel mechanism
Note: for detailed actuator parameters, please enter the pneumatic actuator page access.
Materials of main parts:
Body: cast iron, cast steel, stainless steel
Spool: stainless steel + polytetrafluoroethylene (F46)
Seat: polytetrafluoroethylene (F46)
Stem: 2Cr13
Packing: flexible graphite, polytetrafluoroethylene
Support: cast iron, cast steel, stainless steel
Coupling: 25, 35, 45
