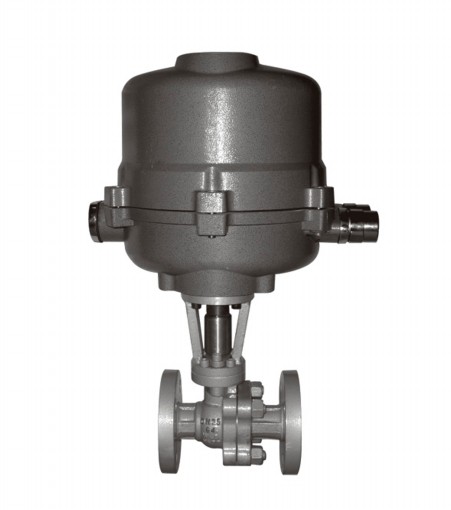

ZDRO Electric O-type shut-off valve

關(guān)注次數(shù)：

Outline
ZDRO series of electric 0-off ball valve electric actuator and ball valve type 0 DN15 ~ 200 floating ball, DN250 ~ 300 is fixed ball structure.
The valve compact structure, small size, light weight, easy assembly and disassembly maintenance, flow through Young, small flow resistance, good sealing performance. The seat is flexible lip structure, with automatic wear compensation and relief role in the cavity, and therefore reliable sealing and long service life.
Widely used in petroleum, chemical, electric power, metallurgy, steel, paper, pharmaceutical, food, textile, light industry and other industries.

Technical parameters and performance
Body

Type	Straight ball valve casting
DN	DN15、20、25、32、40、50、65、80、125、150、200、250、300
Nominal	PN1.6、2.5、4.0、6.4MPa
Flange Standard	JB/T79.1(2)-94、GB/T9113.1(2)-2000
Material	Cast ZG (230-450), cast stainless steel (ZG1Cr18Ni9Ti, ZG1Cr18Ni12Mo2Ti)
Cover on foot	Integral with the valve body into a -45 ~ 400 ℃
Gland Type	Bolt Clamp
Packing	V-type PTFE packing, PTFE impregnated asbestos packing, asbestos textile packing, graphite packing

Valve components

Spool type	Ball spool
Flow characteristics	The quick opening
Material	Cast stainless steel (ZG1Cr18Ni9Ti, ZG1Cr18Ni12Mo2T)
Rated travel	Full 90 °

Executive body

type	3410R、PSQ、HQ Electronic electric actuator
Input Signal	1-5V·DC
Supply Voltage	220V/50HZ
Ambient temperature	-20~+70℃

Body, trim material combinations and standard temperature range
R.TFE (F): two molybdenum reinforced PTFE
R.TFE (C): Carbon fiber reinforced PTFE
HCr: hard chrome plating
S.S: part surfacing Stellite

Body		ZG230-450、ZG1Cr18Ni9Ti			ZG1Cr18Ni12Mo2Ti
Ball core	Material	304	304	304	316	316	316
Ball core	Process	Polishing	Polishing	Spray, polish	Polishing	Polishing	Spray, polish
Stem	Material	304	304	304	316	316	316
Seat	Material	R.TFE(F)	R.TFE(F)	304、316	R.TFE(F)	R.TFE(F)	316
Seat	Process	-	-	S.S	-	-	S.S
Leakage class		VI	VI	IV	VI	VI	IV
Temperature	2G3230-450	-5~+180	-5~+250	-5~+400	-5~+180	-5~+250	-5~+400
Temperature	ZG1Cr18Ni9Ti ZG1Cr18Ni12Mo2Ti	-45~+180	-45~+50	-45~+400	-45~+180	-45~+250	-45~+400

Structure

Actuator configuration, allowing the pressure

DN	15	20	25		40	50		65	80		100	125		150	200		250	300
Executive body	3410RSA-05			3410RSA-10			3410RSA-20			3410RSA-50			3410RSA-60			3410RSA--100
△P（100KPa）	64	64	64		64	64		64	64		63	58		34	17		15	12

Dimensions

Unit：mm

DN	L		H	H1		ΦC	H2
DN	PN16	PN40	H	PN16	PN40	ΦC	H2
15	130	140	310	45	47.5	225	160
20	130	152	310	49	58.5	225	160
25	140	165	330	55	62.5	225	160
40	165	190	350	65	77.5	225	160
50	203	216	360	75	82.5	225	160
65	222	241	435	90	95	225	160
80	241	283	445	95	105	335	160
100	305	305	480	115	127.5	335	160
125	356	381	480	127	140	335	160
150	394	403	595	140	160	335	160
200	457	502	615	172.5	190	335	160
250	533	568	875	310	310	335	160
300	610	648	950	350	350	335	160

Ordering Information
Please fill out when ordering "specifications" or indicate the following:
First, if the order has not been pre-selected models, please provide us your parameters
1, nominal diameter, rated flow coefficient Kv
2, fluid properties (including nominal pressure, temperature, viscosity or pH)
3, a valve in the form of (power - off type or electric - open)
4, the flow characteristics
5, before the valve, the valve pressure
6, valve, valve material
7, the input signal
8, with an attachment, annex models, so that we can correct for your selection.
Second, the special requirements
A special inspection
2, fully to oil, to water treatment;
3, cut copper processing;
4, a special interface, the pipe;
5, under vacuum conditions;
6, designated coating color
7, special media (oxygen, chlorine, hydrogen);
8, the use of stainless steel fittings;
Third, if the company has been selected by the design of the product model, please order directly from our sales department by model.
Please try to provide design drawings and detailed parameters by our experts for your audit checks.
